Mapmaker, Mapmaker, Make me a Map!

There are a lot of wonderful packages out there with geospatial data just ready for you to play with! Today, we’re going to have you work with some on its own, combine it with some external data, and then go out and fetch your own geospatial data to plot. By the end, I’m hoping you will feel like an accomplished mapmaker with a good mastery of the basics to make lovely figures and maps for future papers or web apps.

1. rnaturalearth

One of my favorite packages out there is rnaturalearth. It’s a great package that accesses a subset of the naturalearthdata dataset (which you can also just download parts of and load up). It makes plotting things VERY easy for me when I’m working on projects. I’d like to have you work with it a bit for this question. Load up the following libraries (and if you are missing some, install them!):

library(sf)
library(dplyr)
library(ggplot2)

Warning: package 'ggplot2' was built under R version 4.5.2

library(rnaturalearth)
library(rnaturalearthdata)

To learn more, please read this

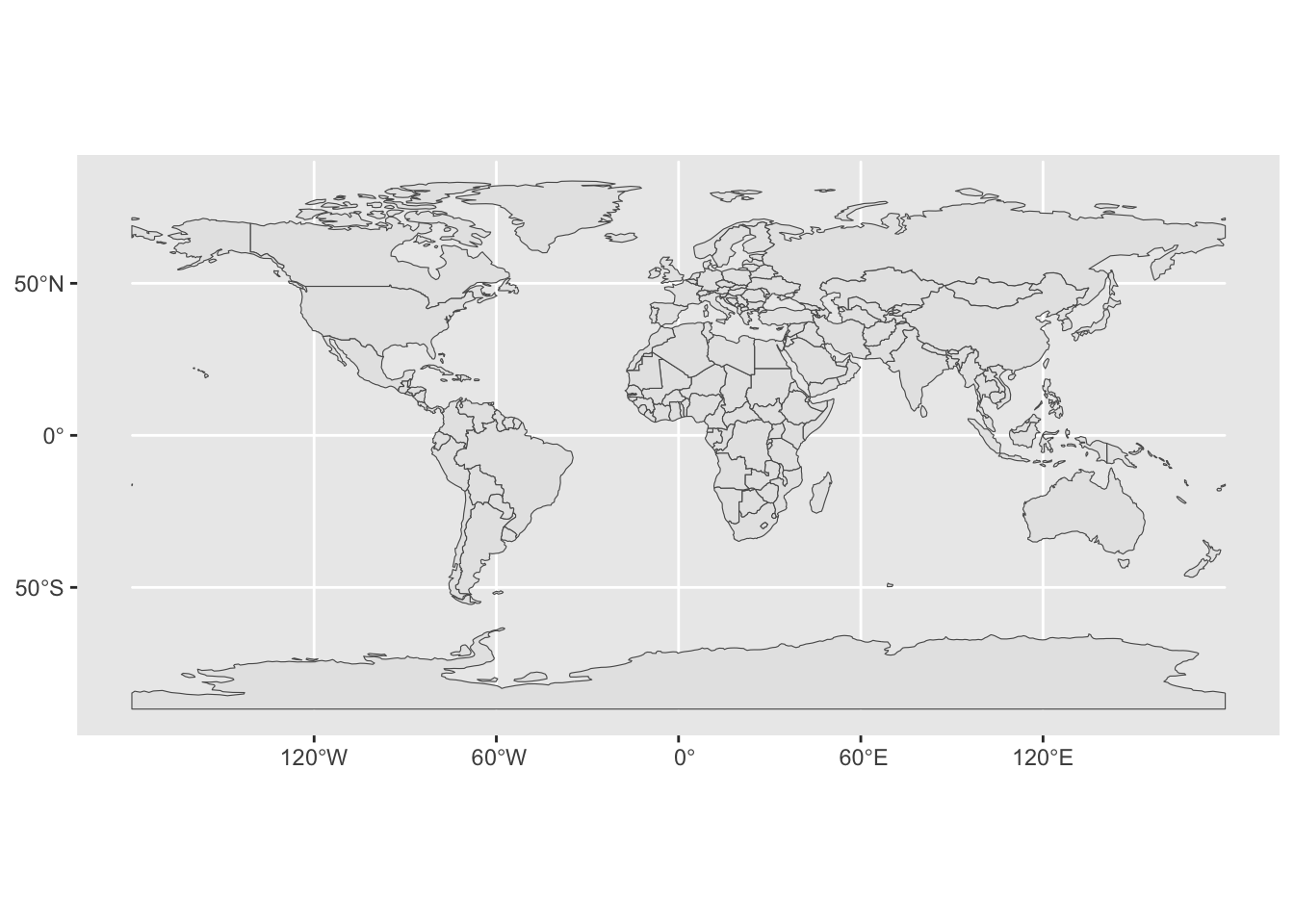

1a) Let’s start with loading up a map of the world using `ne_countries()`. Plot it so we know you’ve got it. Feel free to theme or play with color here.

1c) One of these cultural layers is airports! Load up the global airports layer at `scale = 10`, and create a leaflet map so that we can explore where the world’s airports are. You can use any of the marker functions, such as `addCircleMarkers()` or `addMarkers()`. Use `addProviderTiles()` to give it an interesting background tileset. See here for those tilesets.

Bonus +1: have a popup where if you click it you get the airport name.
Bonus +1: Give it a look other than the default for the marker.

2. Heart disease

Let’s try some joining and see what we can learn. Grab the CDC heart disease data from a few years back and let’s load it up.

2a. Load the data, noting that we need to set `na="Insufficient Data"`. Take a look at what is in it - anything there that might provide a unique identifier?

# A tibble: 3,144 × 4
   State   County   Death_Rate FIPS_Code
   <chr>   <chr>         <dbl>     <dbl>
 1 Alabama Autauga        463       1001
 2 Alabama Baldwin        391.      1003
 3 Alabama Barbour        533.      1005
 4 Alabama Bibb           511.      1007
 5 Alabama Blount         426.      1009
 6 Alabama Bullock        483.      1011
 7 Alabama Butler         490.      1013
 8 Alabama Calhoun        549       1015
 9 Alabama Chambers       469.      1017
10 Alabama Cherokee       429.      1019
# ℹ 3,134 more rows

2b. Now, we need some boundaries of counties! Let’s install the `USAboundaries` package. It’s a cool package that has boundaries of the US from the revolution to now.

devtools::install_github("ropensci/USAboundaries")
devtools::install_github("ropensci/USAboundariesData")

Note - comment these out once you do it.

Now, create an object of counties and take a look and what columns are there.

library(USAboundaries)

Warning: package 'USAboundaries' was built under R version 4.5.2

map_sf <- us_counties()

Here, we don’t have a FIPS code as above But…. it’s a character

2c. OK, let’s make a `FIPS_code` variable to join on! Paste together `statefp` and `countyfp` and turn it into a number. Make sure you don’t accidetally paste a space in between the two fp codes!

map_sf <- map_sf |>
    mutate(FIPS_Code = paste0(statefp, countyfp) |> as.numeric())

2d. Before we join, use `anti_join()` to see two things: 1) if we join without modification, what columns are automagically used for the join. 2) How many and what rows are in the heart disease data set, but not in the counties data set?

2e. To join the data sets, which join would you use? Why? Join them, and make sure the result is an sf object with `st_as_sf()`. Oh, and make sure you filter our Hawaii and Alaska

joined_map <- left_join(heart_disease, map_sf) |>
  st_as_sf() |>
  filter(!(State %in% c("Hawaii", "Alaska")))

Joining with `by = join_by(FIPS_Code)`

2e. OK! Plot mortality from heart disease by county in the continental US. Use a color scheme to make it look good and easy to understand.

3. Quick combo of different data sources

A paper recently published a map of % nighttime fire detections. Load it up as follows:

library(terra)

terra 1.8.42

library(tidyterra)


Attaching package: 'tidyterra'

The following object is masked from 'package:stats':

    filter

nightfire <- read.csv("https://static-content.springer.com/esm/art%3A10.1038%2Fs41586-021-04325-1/MediaObjects/41586_2021_4325_MOESM2_ESM.csv")

fire_spatraster <- rast(nightfire, crs = "epsg:4326")

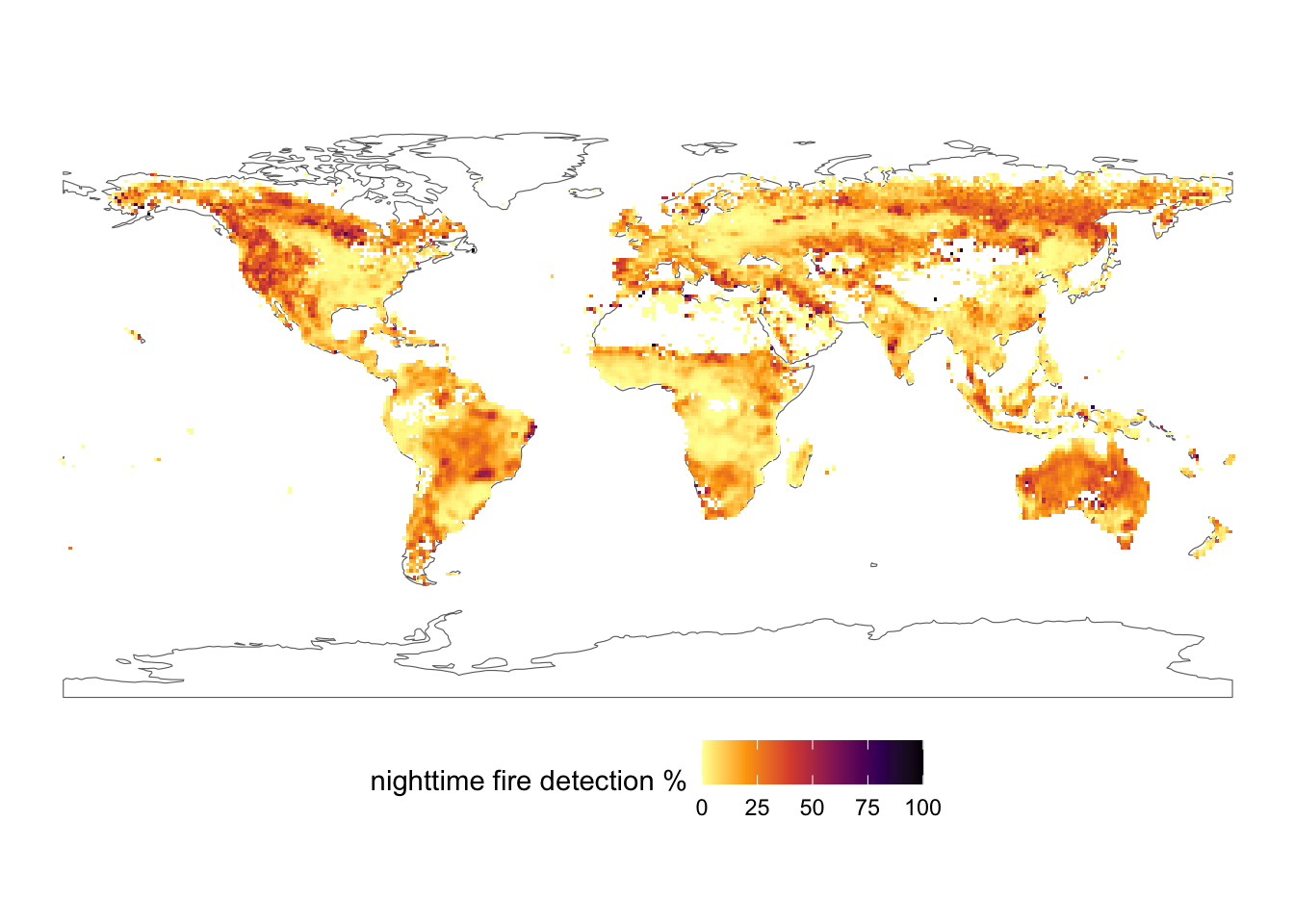

Combine this work your world map above to make a ggplot of fire across the world. Bonus points for exploring st_union() or otherwise to remove inner borders in the world sf object

Spherical geometry (s2) switched off

although coordinates are longitude/latitude, st_union assumes that they are
planar

4. Combining different data sources

OK, we’re going to combine two different rasters - one of Cargo Vessel density in the Western Atlantic in 2011 and one of average ocean bottom temperatures. AND we’re going to combine them with a map of the Coastline….. but I want this to JUST be of the Gulf of Maine area.

Here’s our starting bounding box.

aoi <- c(xmin = -71.674805,
         xmax = -63.083496,
         ymin = 41.277806,
         ymax = 45.935871) |>
  st_bbox() |>
  st_as_sfc() |>
  st_set_crs(4326)

4a. What is your workflow here. Write it out in comments given that you have an aoi, a shapefile of the coast, and two different rasters at different scales, and pretty much everything that a different projection. What is the most efficient way forward from raw files to map?

4b. Let’s get these layers loaded:

Download and unzip the following files: - AIS data
- Oceanography data

Well those are rather large! They are also in an interesting format called a gdb - an ESRI Geodatabase. Fortunately, terra can load from that!

NOTE: USE THIS TO COMPILE YOUR HOMEWORK, BUT DO NOT SUBMIT A ZIPPED UP HOMEWORK WITH THE RASTER DATA OR ZIP FILES - IT WILL KILL CANVAS

#fvcom_temperature_bottom_climatology_1978to2013_annual, fvcom_temperature_surface_climatology_1978to2013_annual, fvcom_stratification_climatology_1978to2013_annual, fvcom_currents_bottom_climatology_1928to2013_annual, fvcom_currents_surface_climatology_1978to2013_annual

envt_raster <- rast("Data/Oceanography/FVCOMAnnualClimatology.gdb",
                    subds = "fvcom_temperature_bottom_climatology_1978to2013_annual")

# PassengerVesselDensity2011, TankerVesselDensity2011, TugTowVesselDensity2011, CargoVesselDensity2011, AllVesselDensity2011

ais_raster <- rast("Data/AIS2011/AIS2011.gdb/",
                    subds = "CargoVesselDensity2011")

Notice how I

4c. Plot both rasters. What are their CRS’s in proj4 and/or EPSG? What happens if you plot both of them using `plot()` for one followed by `plot(second_raster, add = TRUE)`?

4d. OK! Now, implement your plan from A above. Get everything reprojected and cropped to the AOI. You can use `plot()` and `plot(add = TRUE)` to check and make sure that things are in the same projection and cropped right.

4e. Then plot it all together using ggplot2. Note - you’ll need two things to help you. First, think about the order of layers of geospatial data. Second, with your fills, you will need `na.value = "transparent"`. Third - how do you do two fills with different layers? Well, you’ll need a new package! ggnewscale allows you to put a layer into a plot, set properties of it in terms of color of fill, and then reset things to a new fill scale. See the website linked above - but you will need `ggnewscale::new_scale_fill()` in your ggplot2 stack. So `install.packages("ggnewscale")` before you make your plot!
